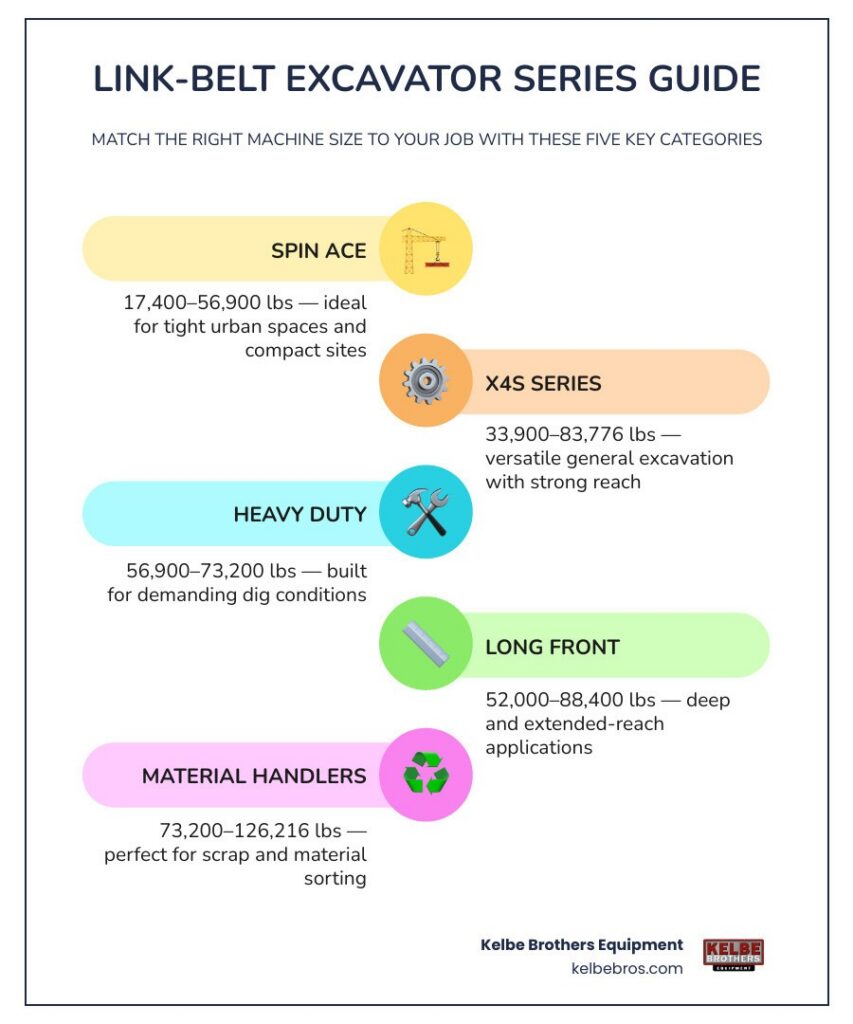

Link-Belt excavator sizes span a wide range — from compact midi machines under 20,000 lbs to massive heavy-duty units exceeding 158,000 lbs. Here’s a fast reference by series:
| Series | Weight Range | Best For |
| Spin Ace (X3/X4) | 17,400 – 56,900 lbs | Tight spaces, urban jobsites |
| X4S Series | 33,900 – 83,776 lbs | General excavation, versatile use |
| X4 Series | 29,100 – 158,300 lbs | Full range from mid to large |
| Heavy Duty | 56,900 – 73,200 lbs | Demanding dig conditions |
| Long Front | 52,000 – 88,400 lbs | Deep or extended-reach work |
| Material Handlers | 73,200 – 126,216 lbs | Scrap, material sorting |
Picking the wrong excavator size is one of the most common — and costly — mistakes on a construction project. Too small, and you’re running extra passes and burning time. Too large, and you’re fighting the machine in tight quarters or hauling more iron than the job needs.
Link-Belt offers one of the broadest excavator lineups in the industry. Whether you’re trenching a utility line on a crowded Wisconsin street or moving massive material at a processing facility, there’s a model built for that job. The challenge is knowing which one.
I’m Jeffrey J. Miller, President of Kelbe Brothers Equipment, and helping Wisconsin contractors navigate link-belt excavator sizes is something our team does every day — backed by over 70+ years of equipment expertise. In the sections below, we’ll break down every major model, series, and spec so you can match the right machine to your next project.
Overview of Link-Belt Excavator Sizes and Series
Link-Belt structures its lineup across several specialized families to ensure that power, reach, and footprint are optimized for specific applications. Understanding these series is the first step in identifying the right size for your job.
X4S Series
The X4S Series represents Link-Belt’s latest advancement in standard-frame performance. Offering 9 distinct models, the X4S family ranges from 33,900 lbs (15.4 metric tons) up to 83,776 lbs (38.0 metric tons). These machines focus heavily on operator comfort, dynamic hydraulic control, and superior fuel economy.
X4 Series
The established X4 Series remains a cornerstone of the lineup, offering robust performance and high durability. This series covers models starting at 29,100 lbs (13.2 metric tons) and extends up to heavy-production machinery weighing 158,300 lbs (71.8 metric tons).
Spin Ace Series
If you are working on tight municipal projects, roadside utilities, or close to standing structures, the Spin Ace Series is the answer. These minimum swing radius machines range from 17,400 lbs (7.9 metric tons) up to 56,900 lbs (25.8 metric tons), allowing operators to swing the upper structure with minimal risk of striking nearby obstructions.
Specialty Series (Heavy Duty, Long Front, Material Handlers)
For projects requiring highly specialized configurations, Link-Belt manufactures built-for-purpose variants:
- Heavy Duty (HD): Models ranging from 56,900 lbs to 73,200 lbs, designed with reinforced undercarriages and heavy-duty attachments.
- Long Front (LF): Operating weights between 52,000 lbs and 88,400 lbs, providing extended reach for ditch cleaning, slope work, and deep pool excavations.
- Link-Belt Material Handlers: Purpose-built sorting machines ranging from 73,200 lbs to 126,216 lbs.
To explore the entire current lineup, check out the official Link-Belt Excavators portal.
Compact and Midi Link-Belt Excavator Sizes
When space is at a premium, compact and midi-sized machines provide the necessary agility without sacrificing the hydraulic flow required to run heavy work attachments.
+————————————————————-+
| MIDI EXCAVATOR WEIGHT COMPARISON |
| |
| 1600 Quantum: [==== 15,432 lbs ====] |
| 75 Spin Ace: [====== 16,900 lbs ======] |
| 75 X3 Spin: [======= 17,400 lbs =======] |
| 80 X3 Spin: [========= 18,900 lbs =========] |
| 145 X4S: [================== 33,900 lbs =============]|
+————————————————————-+
Link-Belt 75 X3 Spin Ace & 80 X3 Spin Ace
The 75 X3 Spin Ace is a highly popular entry in the midi class, featuring an operating weight of 17,400 lbs (7.9 metric tons) and a net power rating of 54 horsepower. For slightly more leverage and lifting capacity, the 80 X3 Spin Ace bumps the operating weight up to 18,900 lbs (8.6 metric tons). Both units utilize a tight tail swing design, making them perfect for urban utility work.
Legacy Midi Models: 75 Spin Ace & 1600 Quantum
For contractors looking at the used market, legacy models remain highly reliable. The Link-Belt 75 Spin Ace has an operating weight of 16,900 lbs and a net power of 52 hp. It delivers a maximum digging depth of 13.59 to 14.9 feet depending on your chosen arm configuration.
Going further back, the classic Link-Belt 1600 Quantum Midi Excavator operates at 15,432 lbs with a 54 hp engine, providing a maximum digging depth of 15.03 feet.
Link-Belt 145 X4S
Bridging the gap between midi and mid-size, the 145 X4S weighs in at 33,900 lbs (15.4 metric tons). This model is highly favored by utility contractors who require the transportability of a smaller machine but the structural strength and reach of a standard frame.
Mid-Size and Large Link-Belt Excavator Sizes
For production digging, heavy commercial development, and mass excavation, mid-size and large excavators form the backbone of the fleet.
Link-Belt 220 X4S
The 220 X4S is a highly versatile mid-size machine, featuring an operating weight of 49,200 lbs (22.3 metric tons). It represents the sweet spot for many regional site prep contractors due to its excellent power-to-weight ratio and ease of transport.
Link-Belt 250 X4 Heavy Duty
Weighing 68,400 lbs (31.0 metric tons), the 250 X4 Heavy Duty is engineered for high-impact environments. It features reinforced structural components designed to handle rocky soils and severe demolition work.
Link-Belt 300 X4S, 355 X4S, and 370 X4S
These large-frame X4S models are designed for major earthmoving:
- 300 X4S: 67,700 lbs (30.7 metric tons)
- 355 X4S: 78,600 lbs (35.7 metric tons)
- 370 X4S: 83,776 lbs (38.0 metric tons)
Link-Belt 490 X4 & 750 X4
When maximum output is required, the heavy-production machines step in. The 490 X4 weighs in at 112,900 lbs (51.2 metric tons), while the massive 750 X4 tops the scales at 158,300 lbs (71.8 metric tons), providing unmatched bucket capacities and breakout forces.
Key Specifications Across Major Models
Selecting the right machine requires looking beyond operating weight to analyze engine power, digging depth, and reach.
Link-Belt uses highly efficient, clean-burning diesel engines across its modern lineup. These engines are paired with advanced hydraulic systems that utilize regeneration circuits to recycle hydraulic fluid, increasing cycle speeds and reducing fuel consumption.
To see how these specifications impact jobsite productivity, consider how choosing the right configuration helps in Reaching New Heights: The Right Hitachi, Link-Belt, New Holland and Takeuchi Machines for Complex Job Sites.
| Model | Operating Weight (lbs) | Engine Model | Net HP | Max Dig Depth | Max Reach |
| 75 X3 Spin Ace | 17,400 | 4LE2 | 54 hp | 14′ 9″ | 20′ 8″ |
| 145 X4S | 33,900 | AR-4JJ1X | 102 hp | 19′ 9″ | 28′ 3″ |
| 220 X4S | 49,200 | AR-4HK1X | 160 hp | 21′ 10″ | 32′ 4″ |
| 355 X4S | 78,600 | AQ-4HK1X | 205 hp | 24′ 10″ | 36′ 8″ |
| 490 X4 | 112,900 | AQ-6UZ1X | 362 hp | 25′ 4″ | 38′ 11″ |
Choosing the Right Size for Your Application
Choosing the correct machine size depends heavily on your primary application. Matching the physical footprint and power of the excavator to the jobsite ensures maximum safety and efficiency.
- Tight Spaces & Urban Utilities: The 75 X3 and 80 X3 Spin Ace are perfect for working next to active traffic lanes, inside buildings, or on residential properties where a standard counterweight would damage surrounding structures.
- General Site Development: The 220 X4S and 300 X4S excel at foundation digging, utility main installations, and general grading.
- Heavy Infrastructure & Quarry Work: Large-scale mass excavation requires the sheer power of the 490 X4 or 750 X4 to keep haul trucks loaded and moving.
- Specialized Material Handling: For recycling yards and scrap facilities, Link-Belt Material Handlers feature elevated cabs and custom boom/stick configurations designed specifically for sorting and loading.
Using an improperly sized machine can lead to excessive wear and costly project delays. Learn more about preventing unexpected downtime in Why Downtime On Your Hitachi, Link-Belt, New Holland, and Takeuchi Machines Hurts More Than You Think.
Frequently Asked Questions about Link-Belt Excavators
What is the smallest Link-Belt excavator model available?
The smallest model in the current lineup is the 75 X3 Spin Ace. It features an operating weight of 17,400 lbs (7.9 metric tons) and a 54 hp engine. With its minimum swing radius, it is designed specifically for highly confined job sites.
How do the X4 and X4S series differ in performance?
The X4S Series is the next evolution of the X4 platform. It introduces advanced hydraulic tuning, improved fuel efficiency, and upgraded cab electronics. These improvements yield noticeable productivity gains and faster cycle times compared to legacy series.
Where can I find official spec sheets for Link-Belt models?
You can obtain official spec sheets and detailed brochures directly through our authorized dealer network. As a premier dealer, we provide complete technical documentation for all models. Learn more by visiting our Link Belt Dealer Wisconsin page.
Conclusion
Finding the perfect excavator size is a balance of transportability, hydraulic power, and physical reach. At Kelbe Brothers Equipment, we have spent decades helping Wisconsin contractors find the exact machines they need to keep their jobsites running smoothly.
Whether you are looking for excavators rental options for a short-term project or ready to browse our inventory of excavators for sale, our experienced team is here to assist. We offer flexible financing, rapid parts delivery, and responsive service support across our Wisconsin locations in Milwaukee, Madison, and Green Bay.
Ready to find your next machine? Explore our full lineup of Link Belt Excavators or contact us today to speak with an equipment expert!
